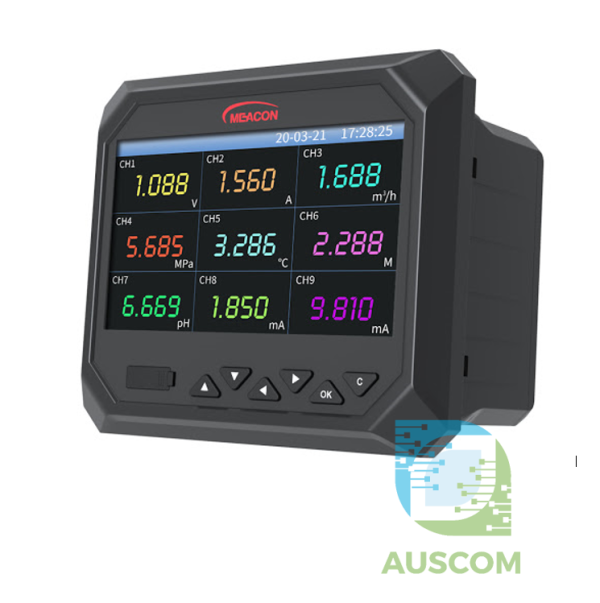

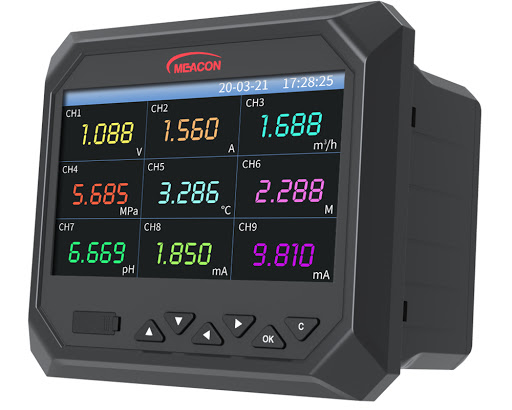

Meacon MIK-6000F Multi-Channel Datalogger Paperless Recorder 7″ LCD Temperature & Signal Inputs

Description

Meacon MIK-6000F Multi-Channel Datalogger Paperless Recorder – Advanced Data Collection & Analysis Solution

Unlock the power of precise data recording with the Meacon MIK-6000F Multi-Channel Datalogger Paperless Recorder, an advanced and highly reliable solution for data monitoring, collection, and analysis. Designed to meet the demands of modern industries, this high-performance paperless recorder ensures accurate data management with flexibility and ease.

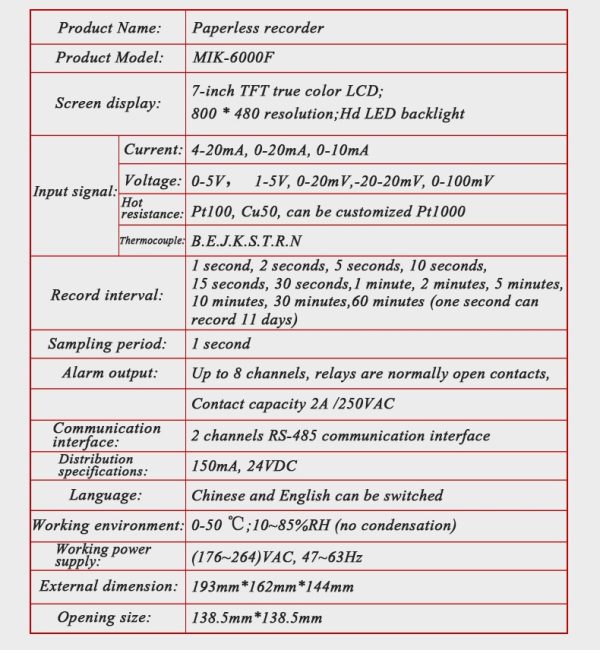

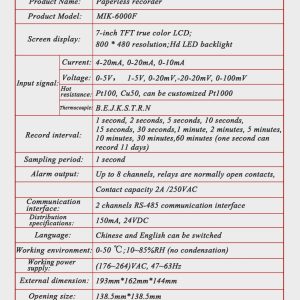

Key Features of the Meacon MIK-6000F Multi-Channel Datalogger:

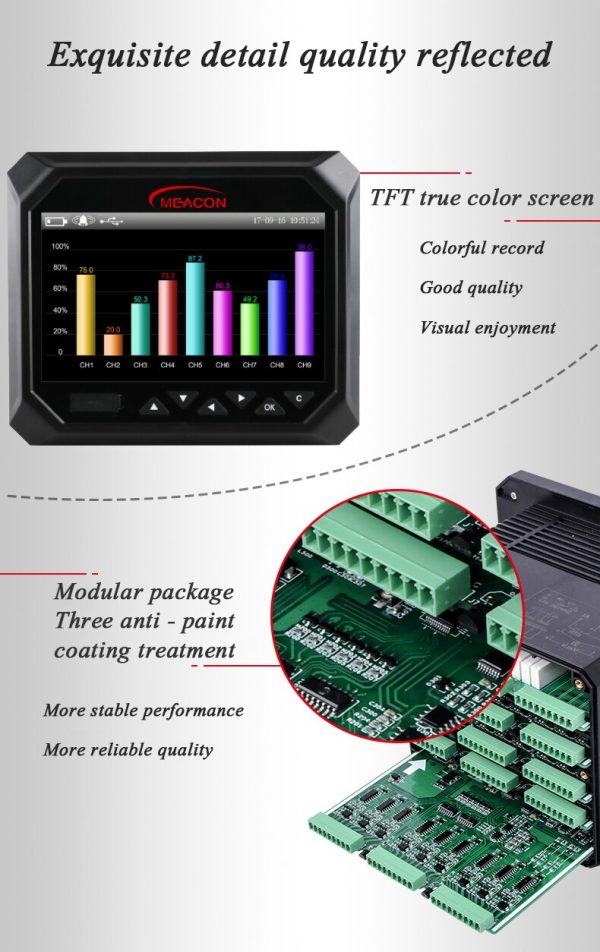

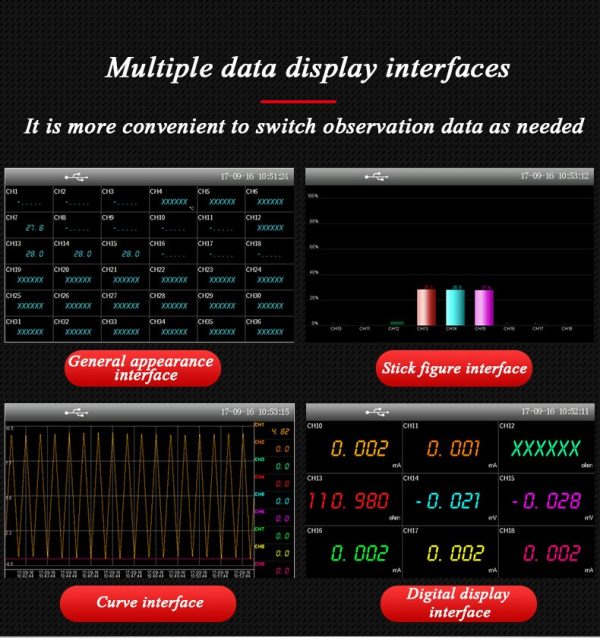

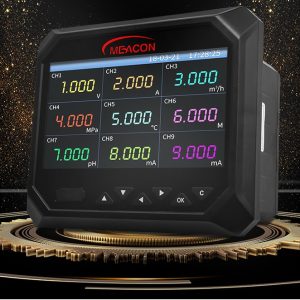

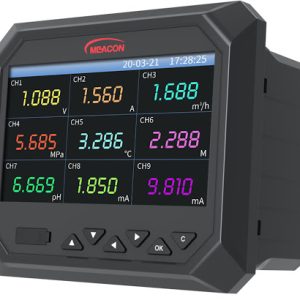

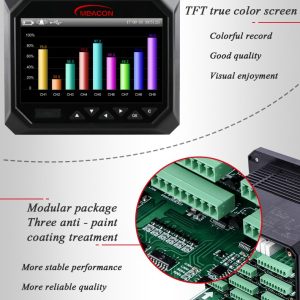

• High-Resolution 7-Inch Color LCD Display: Enjoy vivid, clear data visuals on the 7-inch TET color LCD with a sharp 800×480 resolution and HD LED backlighting. Perfect for easy monitoring and real-time data analysis.
• Wide Range of Signal Inputs: Efficiently capture and record a variety of signals with inputs for 4-20mA, 0-20mA, 0-10mA, as well as 0-5V, 1-5V, 0-20mV, -20-20mV, and 0-100mV voltage ranges, offering unmatched versatility.
• Temperature Measurement Capability: Accurately monitor temperatures with support for multiple types of thermal resistance inputs such as Pt100, Cu50, and Pt1000, along with various thermocouple types including B, E, J, K, S, T, R, and N.
• Customizable Recording Intervals: Optimize your data collection frequency with adjustable recording intervals from 1 second to 11 days, including ultra-precise 1-second intervals for high-frequency sampling.
• High-Frequency Data Sampling: Capture data with precision using the 1-second sampling period, ensuring your records are accurate and up-to-date.
• Comprehensive Alarm System: Manage data monitoring with confidence using the 8-channel alarm system, complete with reliable 2A/250VAC relay contacts and normally open outputs to notify you of critical thresholds.
• Easy Integration with RS-485 Communication: Simplify data transfer and system integration with the 2-way RS-485 communication interface, ensuring seamless connectivity with your existing monitoring systems.
• Durable and Reliable Power Supply: Designed to function reliably in diverse conditions, the MIK-6000F operates within a 0 to 50°C temperature range and a 10-85% RH humidity range (non-condensing) for dependable performance in various environments.
• Wide Power Supply Range: The recorder supports a power supply range of 176-264 VAC and 47-63Hz frequency, ensuring compatibility with different electrical systems.

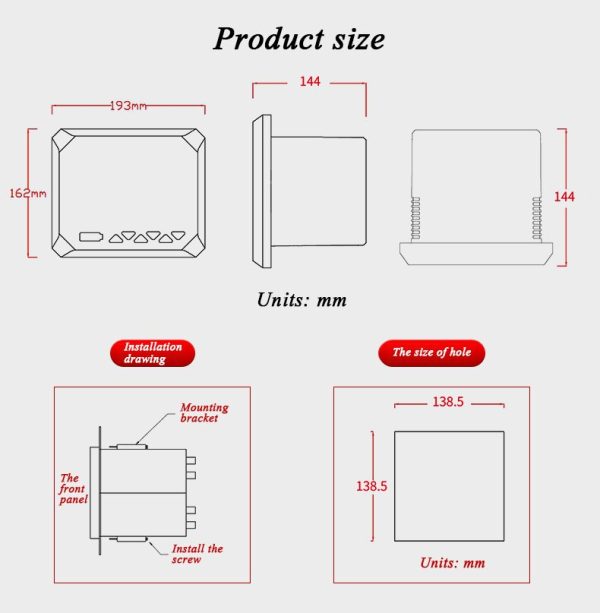

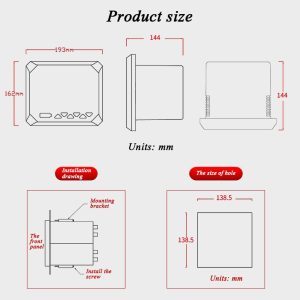

• Compact & Space-Saving Design: With dimensions of 193mm x 162mm x 144mm, this sleek and efficient recorder fits seamlessly into any workspace, offering a hassle-free installation process with an opening size of 138.5mm x 138.5mm.
• Dual Language Support: Switch between Chinese and English interfaces, providing a user-friendly experience tailored to your language preferences.

Enhance your data recording capabilities with the Meacon MIK-6000F Multi-Channel Datalogger Paperless Recorder – the ultimate tool for professionals who demand precision, flexibility, and reliability in data collection and monitoring.
